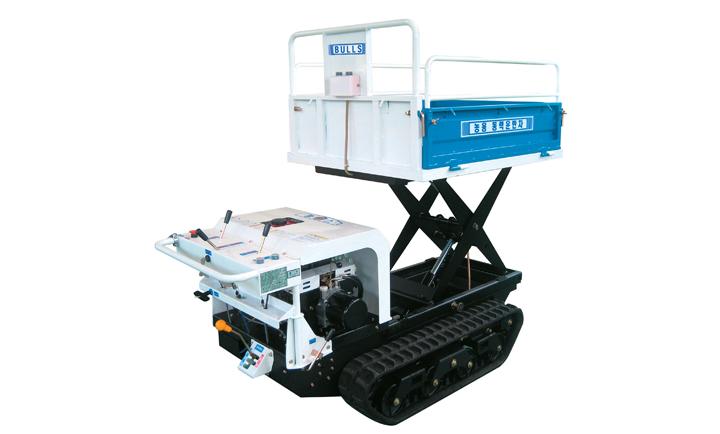

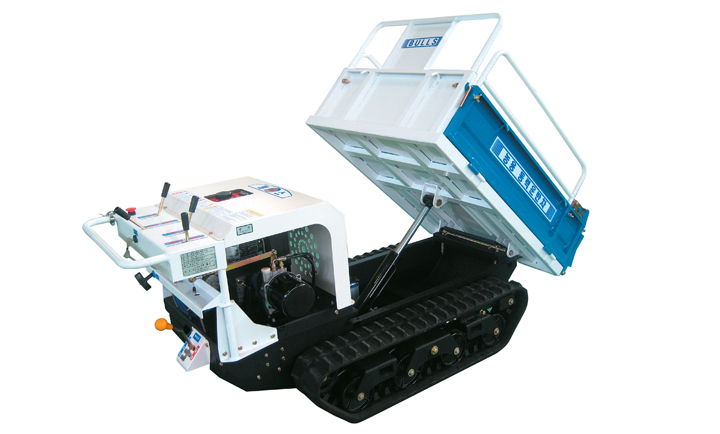

| Model | Dimension(mm) | Weight(Kg) | Loadage(Kg) | Lift height(mm) |
| BG-3000H | 2200 × 980 × 1125 | 405 | 500 | 1200(Ground to loading box) |
| BG-3000 | 2200 × 980 × 1125 | 325 | 500 | Not applicable |
| Model | Engine(HP) | Transmission | Engine Ignition | Fuel tank |
| BG-3000H | Rating 6.5 Max. 8 Gasoline Engine |
3-forward speed 2-backward speed |
Ignition Key Recoil starter |
5 liters |
| BG-3000 | Ratine 6.5 Max. 8 Gasoline Engine |
3-forward speed 2-backward speed |
Ignition Key Recoil starter |
5 liters |
 |
| One-touch starter key |
 |
| Emergency stop switch |
 |
| Transmission (3-speed forward, 2-speed backward) |
 |

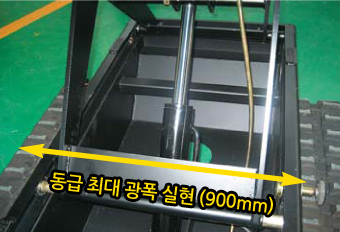

Robust infrastructure and wide range Durability of lower frame, safety was secured by the realization of maximized diameter of cylinder which is best in class. |
 |

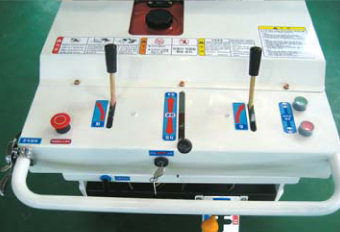

Convenient centralized control unit All operating functions are gathered on the handle, thus safety and work efficiency are doubled. |
 |

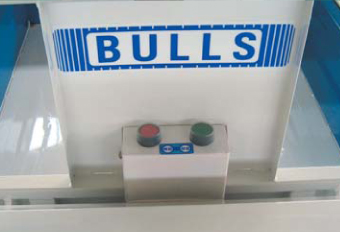

Up and down operation can be done in loading box(BG-3000H) Safety and workability doubling as up and down control is available in loading box during high position operation |
 |

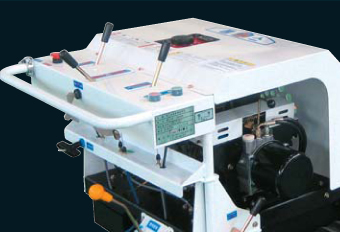

Engine and hydraulic pump protection cover Protects engine and hydraulic pump from various foreign substances during operation → Failure prevention and durability enhancement. |
 |

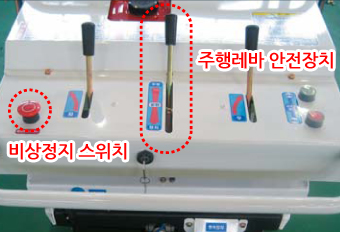

Built-in complete safety device Emergency stop switch built-in: Immediate stop when pressed Driving lever safety device: Starter is not operated when it is located in driving. |
 |

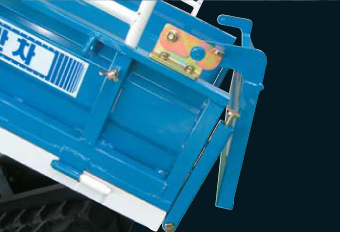

Convenient back door switchgear(BG-3000) Automatically opens the rear door at the time of dump to double work efficiency. |
|
|
|
|
|
