17 years career of field agricultural machine manufacturing.
The best field agricultural machine manufacturer!
"We just take the lead the industry rather than compete."
Garlic stem cutter
Korea's first innovative screw transfer system

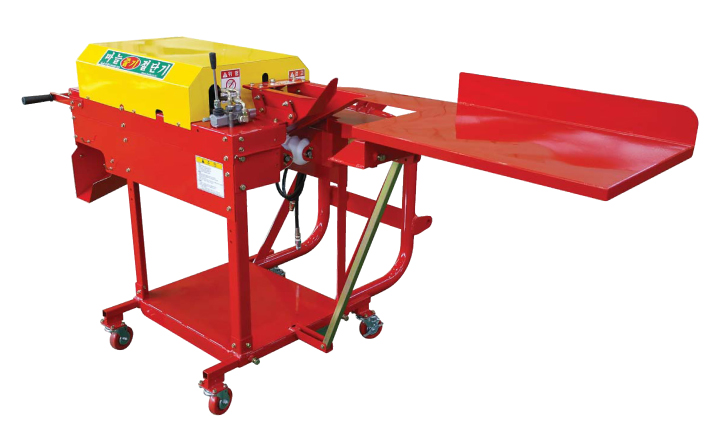

BHS-207 (Motor type)

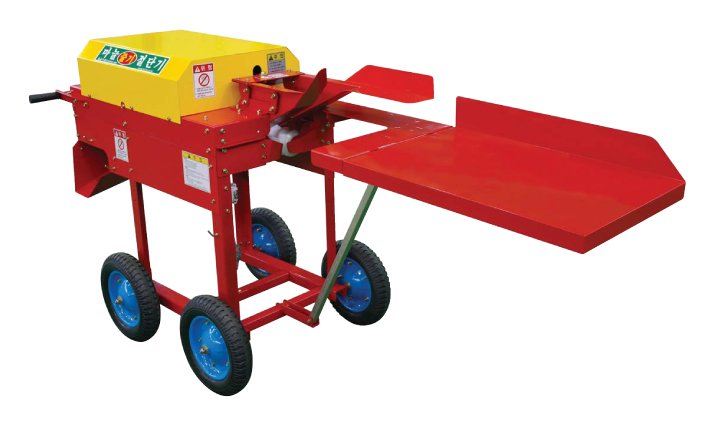

BG-207T (Tractor type)
FEATURE
  • Adopted the first screw transfer system in Korea
    - Garlic is firmly fixed and stem cutting is constant.
    - The work efficiency is excellent because no debris is caught in the gap during work.
    - Few cutting damage.
  • Cutting length is adjustable freely
  • Adjustable spacing of feed screw
  • High performance and functions, low price
    - Screw moving speed → 360mm per second
    - More than 15,000 cuts per hour
  • Garlic stem cutting is possible in the field efficiently.
SPECIFICATION
Model Type Dimension(mm)
Length Width Height
BHS-207 circular disk saw 2100 570 1230
BG-207T circular disk saw 2100 1200 1118
Model Power Weight(Kg) Capacity(unit/hr)
BHS-207 single-phase AC220V 0.4Kw 102 15,000 more
BG-207T Tractor Hydralic 160 15,000 more

Specification can be changed without notice for upgrade.
SPECIFICATION
PARTIAL FEATURE
By adoption of vibration type, doubles the input efficiency
Feed screw
Garlic leaf scraps are not caught.
Circular cutting blade
Stem cutting position can be freely adjusted.
Convenient moving wheels
