17 years career of field agricultural machine manufacturing.
The best field agricultural machine manufacturer!
"We just take the lead the industry rather than compete."

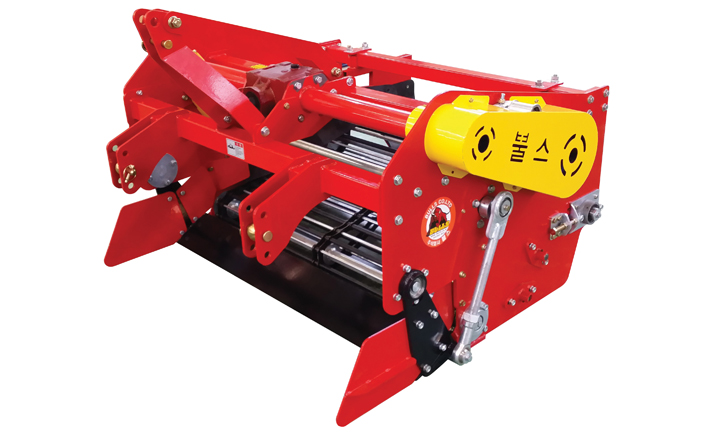

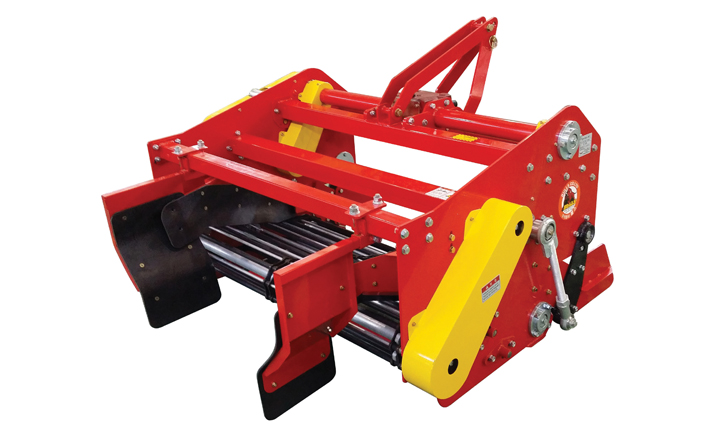

Underground crop harvester - For multi-purpose such as onion, garlic, etc.
Bulls underground crop harvester is definitely different!
BG-1200H
BG-1500H
FEATURE
  • Underground crop harvesters such as onion, garlic.
  • Tractor's 3-point link connection makes it easy to mount and detach.
  • Possible to harvest garlic and onion by adopting back and forth vibration device.
  • There is no damage when harvesting underground crops such as onions.
  • Collects harvested crops into the center and prevents them from escaping from the furrow.
SPECIFICATION
Model Dimension(mm) Weight(Kg)
Length Width Height
BG-1200H 1615 1500 1140 270
BG-1500H 1615 2040 1140 310
BG-1400GN 1620 1650 1090 325
Model Dimension(mm) Min. Power(HP) Applicable
BG-1200H 1200 40~50 onion, garlic etc.
BG-1500H 1500 40~50
BG-1400GN 400~1200 40~50

Specification can be changed without notice for upgrade.
SPECIFICATION
MAJOR COMPONENTS
  • Back and forth vibration device
  • Guide plate
  • Guide variable device
  • Belt tension adjuster
